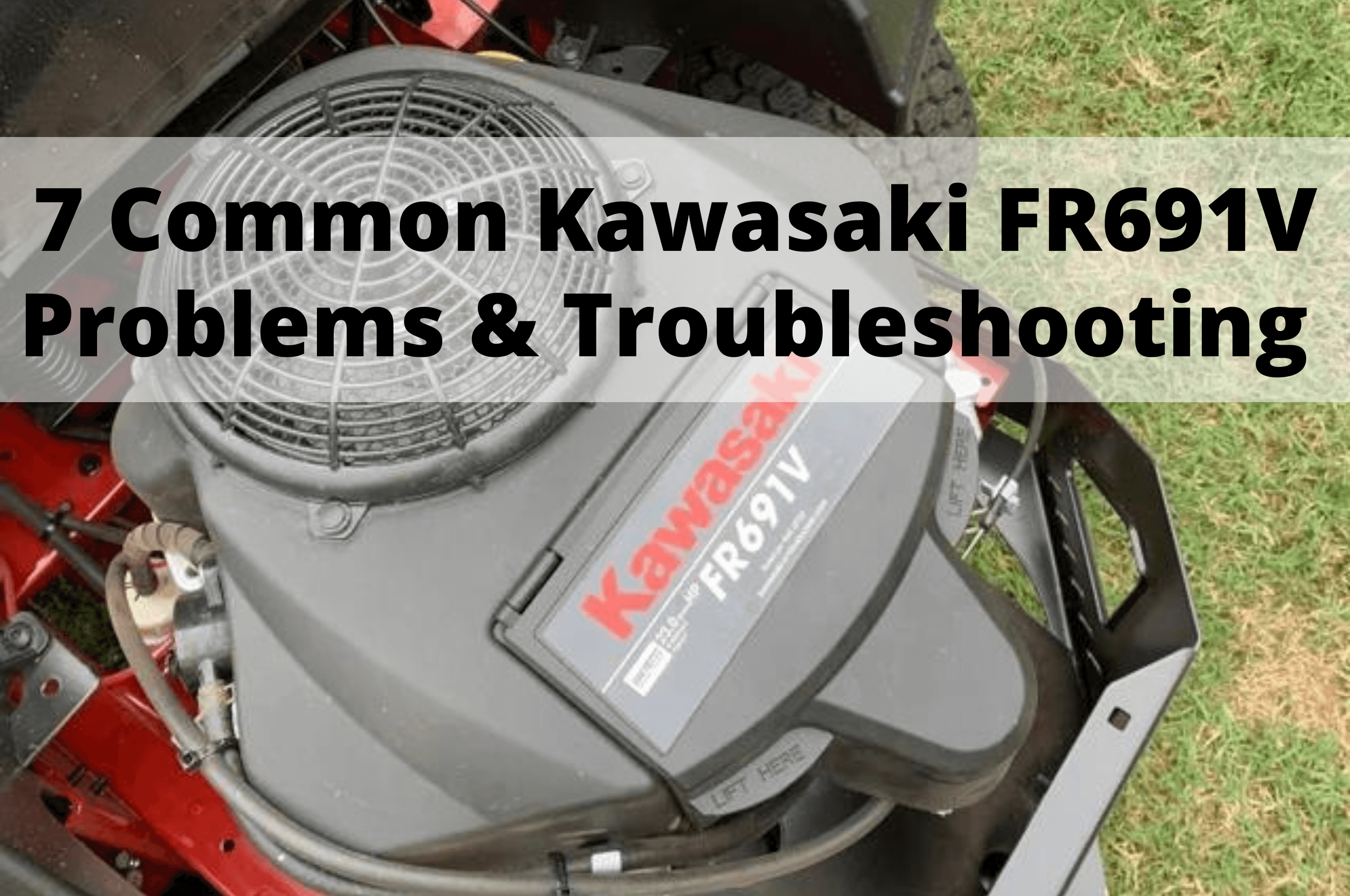

7 Common Kawasaki FR691V Problems & Troubleshooting

If you are looking for a power upgrade for your mower, getting a Kawasaki FR691V can be an ideal solution for this need. This replacement engine is meant to fulfill residential tasks requiring a powerful, heavy-duty engine. This member of the Kawasaki family is a small 4-stroke engine that can fit numerous farming and gardening machines.

Despite adding a power and performance boost to various lawn mowers and tractors, some users are experiencing a few Kawasaki fr691v problems. The most common problem with this engine includes starting failure, engine overheating, or blocked fuel lines.

This article will provide details and solutions if you want to learn more about these issues.

The Most Common Problems with Kawasaki FR691V

Table of Contents

The presence of problems with this Kawasaki fr691v will not ruin your entire experience with this power solution. You can easily handle them or even prevent them from occurring with proper use and adequate maintenance.

1. The Engine won’t start

This is a common issue with various brush and zero-turn mowers as well. The most straightforward reason for this issue could be a faulty spark plug. When this plug goes bad, there won’t be any sparks reaching the engine. So, it won’t work at all. You can suspect your plug even more when you hear the engine crank, but there is no spark.

A spark plug can get faulty for various reasons. It might be clogged or corroded. Also, normal wear and tear can lead to the plug’s expiration. So, regardless of the cause, you need your plug to work. To properly fix this issue, you must remove the old plug and install a new one.

Another cause for this issue could be in the combustion chamber. Simply put, no fuel could reach it due to a lack of gas inside the tank. In this case, you will need to refuel the tank. Also, it is worth checking out the valve of the fuel pump. It could be adjusted to the “off” position. So, you will need to turn it back on.

2. The Engine overheats

This issue happens with numerous mowers, including the Cub Cadet LTX 1050. This issue can make you take another look at the combustion chamber. This time, you would be looking for clogs or deposits. These happen when the combustion process leaves some carbon that builds up and takes the form of soot.

This can clog up essential parts of the engine, which leads to overloading the machine’s energy source and preventing it from proper ventilation.

Cleaning the chamber components is the only solution for one of the most common Kawasaki fr691v problems. You can find commercial cleaning solvents for unclogging engine components without damaging them. Also, bring a wire brush or a toothbrush if you don’t have the wired one. Together, they can ensure proper cleanliness.

3. Low compression

Proper compression is essential for combustion and blending air and fuel inside the engine. When the compression is insufficient or low, the engine’s cylinders won’t be able to compress the air correctly. Various factors can cause this situation, but a faulty head gasket is one of the biggest suspects.

When the head gasket is not working correctly, oil might get inside the combustion chamber and interfere with the process of air and fuel blending. This can lower or even prevent air compression. You can replace a blown or faulty head gasket to solve this issue.

4. Blockage in the fuel line

Fuel lines or hoses are part of the engine’s fuel system. Their primary role is to let the gas pass from the fuel tank to the engine’s carburetor. When there is old, unused, or expired gas, a thick deposit can plug up the lines and prevent proper fuel flow.

There is not much to do to overcome this issue. It is either cleaning or replacing the fuel lines. Any servicing for fuel hoses or lines requires turning off the fuel shutoff valve and draining the gas reservoir.

5. Battery drains more frequently

The battery of your Kawasaki fr691v is not supposed to drain quickly. It should last for months of use and even during storage seasons. If the battery drains heavily, you should instantly inspect its regulator. The regulator is responsible for organizing the voltage amounts, which come from the alternator and head to the battery.

If the regulator stops functioning for any reason, no new voltage will reach the battery. This leads to battery drainage despite frequent charging. You can use a voltmeter to test the regulator. If you are sure a faulty regulator causes the problem, you will need a new one. While you are at it, you can also test the alternator; it could be the cause of the drainage.

6. Fuel leakage

Another repetitive issue is not only one of the Kawasaki fr691v problems but is also found in chainsaws like the Stihl ms 261c-m. There are countless possible culprits in this situation. First of all, there could be something wrong with the carburetor. With frequent use, the body of this component could get cracked or damaged.

Also, a lack of cleanliness can make parts of the carburetor corrode. All these issues can lead to gas leaks inside the engine. However, there is not much repair work on a damaged carburetor. You can invest in a new one to spare the effort of unnecessary repairs.

Secondly, you will need to look closely at the fuel tank. It could show signs of wear and tear, leading to leaking fuel. A cracked or worn-out fuel reservoir shouldn’t get repaired; rather, it should be replaced.

7. The Engine runs poorly

This engine runs efficiently and smoothly without making strange noises or vibrations. When your Kawasaki fr691v engine runs poorly or rough, you will have to check out various components of the machineStart with the fluids, such as oil and fuel. Make sure they are not old. If the reservoirs contain fluids that have not been used for over a month, they must be drained and replaced with new fluids.

It is mandatory to use nothing but the oil and fuel recommended by the manufacturer to avoid damaging the engine. Also, it would be best to look at the carburetor and the spark plug to ensure there are no issues with ignition. Additionally, ensure all the valves are in the correct position and properly tightened.

Kawasaki FR691V Problems: are they a deal breaker?

No, all these widely discussed Kawasaki fr691v problems don’t make the engine unworthy. You still have a powerful engine that is made to endure hard work and countless hours of running. It will take your machine to a new level in terms of performance and durability.

This member of the Kawasaki family promises you a versatile performance due to its 23 horsepower and 4 power cycles. It is a 2-cylinder engine that tops many other machines in the same price and specification range. Remember that this engine has a warranty that offers more comprehensive protection for your power solution investment.

This engine is designed for quiet operation, with no jarring vibrations or unusual smoke exhaust. With all its great features, the Kawasaki FR691V engine is not demanding when it comes to maintenance. This does not, however, imply disregarding or ignoring basic cleaning and care requirements.
